Understanding Register Files in CPU Architecture

A register file is a small, fast storage area within a CPU designed to hold temporary data for quick access. It provides immediate access to frequently used values, which enhances performance by minimizing the time spent retrieving data from slower memory sources.

What is a register file?

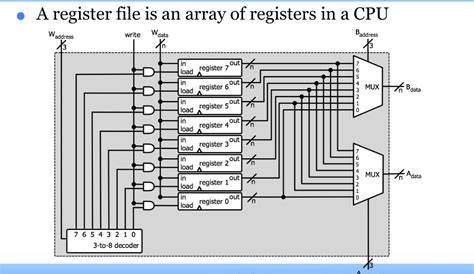

A register file is a collection of registers used in CPU architecture to store data temporarily during computation. Registers are small storage locations that hold data, instructions, addresses, or intermediate results. For example, when a CPU executes a calculation, it may store the operands in registers for quick access rather than retrieving them from the main memory, which is much slower. Essentially, the register file acts as a high-speed cache for the CPU, enabling faster processing of data and instructions.

How does a register file work within the CPU?

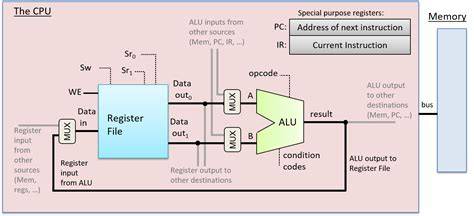

The register file interacts closely with various components of the CPU, including the Arithmetic Logic Unit (ALU) and the control unit. When the CPU needs to perform an operation, it retrieves the necessary data from the register file. The ALU then processes this data and may store the result back into the register file. This process significantly speeds up operations because accessing data in the register file is faster than accessing data from RAM or cache.

For example, to add two numbers, the CPU first loads these numbers into registers from memory. The ALU then performs the addition using the values in the registers and stores the result back into another register.

Types of register files used in modern processors

There are several types of register files found in modern processors, each serving different purposes:

• General-Purpose Register Files: Used for a wide range of operations, these registers can hold various types of data. Most CPUs have a fixed number of these registers available for programmers to use freely.
• Special-Purpose Register Files: These registers are dedicated to specific functions, such as holding the program counter or status flags. For instance, the program counter tracks the next instruction to execute.
• Floating-Point Register Files: Specifically designed for handling floating-point calculations, these registers are essential in scientific computations and graphics processing. They can perform operations on decimal numbers more efficiently than general-purpose registers.

Common misconceptions about register files

One common misconception is that register files are the same as cache memory. Although both serve to speed up data access, they are fundamentally different. Register files are part of the CPU, allowing immediate access to data, while cache memory is a separate hierarchy of storage that acts as a bridge between the CPU and main memory.

Another misunderstanding is that all registers are of equal size. In reality, registers can vary in size and purpose; some may be 32 bits wide, while others could be 64 bits, depending on the CPU architecture.

Why understanding register files is crucial for aspiring developers

Understanding register files is vital for anyone interested in CPU design or low-level programming. Knowing how data is stored and accessed can lead to better optimization techniques in programming. For instance, understanding which data should be kept in registers can help you write more efficient algorithms, reducing the number of memory accesses required and improving overall performance. This knowledge also aids in debugging and performance tuning.

Conclusion

To enhance your understanding further, consider exploring CPU architecture resources or experimenting with low-level programming languages like C or assembly. Practical experience will help solidify your grasp of how register files function within a CPU.
